JanVolk
Guru

Joined: 28/01/2023
Location: Netherlands
Posts: 366

Posted: 10:33am 03 Jun 2026

Copy link to clipboard

Print this post

Peter,

Updated the PicoMite MMBasic RP2040 V6.03.00RC15 test firmware and copying the long file from A to B with FM first marked with * and then F5 works perfectly now. Thanks.

Jan.

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2983

Posted: 10:45am 03 Jun 2026

Copy link to clipboard

Print this post

Has anyone been able to get USB touch working that connects to the Pico via HDMI (for the video) but with a screen that also accepts video via the same USB C that touch is on??

Peter - with your thorough knowledge, is the above a non starter for screens that use the USB for video and touch? I.e. does the usb need to be dedicated to touch data only?
Edited 2026-06-03 20:46 by WhiteWizzard

JanVolk
Guru

Joined: 28/01/2023
Location: Netherlands
Posts: 366

Posted: 12:08pm 03 Jun 2026

Copy link to clipboard

Print this post

Has anyone seen this before?
I have no video signal. Perhaps the OPTION VGA PINS aren't working correctly?
I also no longer see the option resolution 640x480 @ 252000 KHz.
It did work with an older version. Or is there something wrong with my hardware?

PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC15
Copyright 2011-2026 Geoff Graham
Copyright 2016-2026 Peter Mather

> US USB Keyboard Connected on channel 1
> USB Mouse Connected on channel 2

> option list
PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC15
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SYSTEM I2C GP16,GP17
OPTION FLASH SIZE 16777216
OPTION COLOR CODE ON
OPTION KEYBOARD US
OPTION HEARTBEAT OFF
OPTION PICO OFF
OPTION SDCARD GP21, GP18, GP19, GP20
OPTION VGA PINS GP11,GP22
OPTION AUDIO I2S GP13,GP15', ON PWM CHANNEL 6
OPTION RTC AUTO ENABLE
OPTION F1 help
OPTION F5 list commands
OPTION F6 list functions
OPTION F7 list pins
OPTION F8 option list
OPTION F9 fm
OPTION PLATFORM PicoMiteVGAUSB RP2040-PiZero

See this version for video signal.

> option list
PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC9
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SYSTEM I2C GP16,GP17
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION HEARTBEAT OFF
OPTION PICO OFF
OPTION RESOLUTION 640x480 @ 252000KHz
OPTION SDCARD GP21, GP18, GP19, GP20
OPTION VGA PINS GP11,GP22
OPTION AUDIO I2S GP13,GP15', ON PWM CHANNEL 6
OPTION RTC AUTO ENABLE
OPTION F1 help
OPTION F5 list commands
OPTION F6 list functions
OPTION F7 list pins
OPTION F8 option list
OPTION F9 fm

> list pins
GP0 1 OFF
GP1 2 OFF
GP2 4 OFF
GP3 5 OFF
GP4 6 OFF
GP5 7 OFF
GP6 9 OFF
GP7 10 OFF
GP8 11 Boot Reserved : CONSOLE TX
GP9 12 Boot Reserved : CONSOLE RX
GP10 14 OFF
GP11 15 Boot Reserved : VGA HSYNC
GP12 16 Boot Reserved : VGA VSYNC
GP13 17 Boot Reserved : I2S BCLK
GP14 19 Boot Reserved : I2S LRCK
GP15 20 Boot Reserved : I2S DATA
GP16 21 Boot Reserved : SYSTEM I2C SDA
GP17 22 Boot Reserved : SYSTEM I2C SCL
GP18 24 Boot Reserved : SPI SYSTEM CLK
GP19 25 Boot Reserved : SPI SYSTEM MOSI
GP20 26 Boot Reserved : SPI SYSTEM MISO
GP21 27 Boot Reserved : SD CS
GP22 29 Boot Reserved : VGA BLUE
GP23 41 Boot Reserved : VGA GREEN L
GP24 42 Boot Reserved : VGA GREEN H
GP25 43 Boot Reserved : VGA RED
GP26 31 OFF
GP27 32 OFF
GP28 34 OFF
GP29 44 OFF

Jan.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11435

Posted: 01:09pm 03 Jun 2026

Copy link to clipboard

Print this post

This working perfectly for me

PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC15
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SYSTEM I2C GP14,GP15
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION PICO OFF
OPTION RESOLUTION 640x480 @ 252000KHz
OPTION SDCARD GP13, GP10, GP11, GP12
OPTION VGA PINS GP23,GP18
OPTION AUDIO GP16,GP17', ON PWM CHANNEL 0
OPTION RTC AUTO ENABLE
> list pins
GP0 1 OFF
GP1 2 OFF
GP2 4 OFF
GP3 5 OFF
GP4 6 OFF
GP5 7 OFF
GP6 9 OFF
GP7 10 OFF
GP8 11 Boot Reserved : CONSOLE TX
GP9 12 Boot Reserved : CONSOLE RX
GP10 14 Boot Reserved : SPI SYSTEM CLK
GP11 15 Boot Reserved : SPI SYSTEM MOSI
GP12 16 Boot Reserved : SPI SYSTEM MISO
GP13 17 Boot Reserved : SD CS
GP14 19 Boot Reserved : SYSTEM I2C SDA
GP15 20 Boot Reserved : SYSTEM I2C SCL
GP16 21 Boot Reserved : AUDIO L
GP17 22 Boot Reserved : AUDIO R
GP18 24 Boot Reserved : VGA BLUE
GP19 25 Boot Reserved : VGA GREEN L
GP20 26 Boot Reserved : VGA GREEN H
GP21 27 Boot Reserved : VGA RED
GP22 29 OFF
GP23 41 Boot Reserved : VGA HSYNC
GP24 42 Boot Reserved : VGA VSYNC
GP25 43 HEARTBEAT
GP26 31 OFF
GP27 32 OFF
GP28 34 OFF
GP29 44 OFF

JanVolk
Guru

Joined: 28/01/2023
Location: Netherlands
Posts: 366

Posted: 01:56pm 03 Jun 2026

Copy link to clipboard

Print this post

Peter,

Thanks for investigating and the response.

I am going to investigate further why it works correctly with PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC9 but not with V6.03.00RC15, and how it is with the intermediate versions.
If I find anything, I will let you know.

Jan.

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 623

Posted: 04:24pm 03 Jun 2026

Copy link to clipboard

Print this post

Hi Peter,
is there any update on the multi-touch issue with the MageDok display?
Is there anything I can do to help?

Matthias

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11435

Posted: 04:30pm 03 Jun 2026

Copy link to clipboard

Print this post

Quote s there any update on the multi-touch issue with the MageDok display?

If you can find it please re-post the diagnostic from that screen and post a link to any details.
Edited 2026-06-04 02:31 by matherp

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 623

Posted: 04:59pm 03 Jun 2026

Copy link to clipboard

Print this post

homa said

matherp said Another version to test on the first panel

PicoMite.zip

lastVersion.zip

Was the data insufficient? Shall I run this version again?
So far, the information is only available on the webshop: https://store.magedok.com/products/9-inch-raspberry-pi-touch-monitor-with-hdmi-input-t090a
and there, the Touch Controller： ILITEK 2132 ?!
https://www.cdtech-display.com/wp-content/uploads/2025/09/ILI2132_DTS_V003_20200616.pdf

I'll carry on looking later.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11435

Posted: 05:20pm 03 Jun 2026

Copy link to clipboard

Print this post

Does that report include definitely trying two fingers at the same time? If not please run again with the version that had the diagnostics and specifically try touching in two places at once. This is needed to see if the required report is actually happening. That controller boots up in "mouse" mode. i.e. single touch and simple reports but I need to know if the multi-touch reports are also happening.

JanVolk
Guru

Joined: 28/01/2023
Location: Netherlands
Posts: 366

Posted: 05:40pm 03 Jun 2026

Copy link to clipboard

Print this post

Peter,

I reloaded PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC15 and performed OPTION RESET.
Also > Drive "A:/FORMAT" and then copied options line by line from Notepad++ to Tera Term in a specific order.
After that, I transferred the backup folder using FM. I made some adjustments to the options list.
PiZero module with a 64x29mm perforated board underneath containing RTC+EEPROM, VGA connector and resistors, and an I2S module with 3mm spacer sockets.
All pins are accessible and the unused HDMI pins have been used for VGA. The whole assembly is 35mm high and compact. A speaker set from Action (12 Euros) makes it complete. The bottom was finished with a similar perforated board.
On the PiZero, I adjusted the debug pins for Rx=GP9 and Tx=GP8.
Everything is working properly so far.

Thanks for the support.
This is my options list:

> option list
PicoMiteVGA MMBasic USB RP2040 Edition V6.03.00RC15
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SYSTEM I2C GP16,GP17
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION HEARTBEAT OFF
OPTION PICO OFF
OPTION RESOLUTION 640x480 @ 315000KHz
OPTION SDCARD GP21, GP18, GP19, GP20
OPTION VGA PINS GP11,GP22
OPTION AUDIO I2S GP13,GP15', ON PWM CHANNEL 6
OPTION RTC AUTO ENABLE
OPTION MODBUFF ENABLE
OPTION F1 help
OPTION F5 list commands
OPTION F6 list functions
OPTION F7 list pins
OPTION F8 option list
OPTION F9 fm
OPTION PLATFORM PicoMiteVGAUSB RP2040-PiZero

Jan.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11435

Posted: 05:52pm 03 Jun 2026

Copy link to clipboard

Print this post

Homa

Another question. Have you run the display on a windows machine. Can you confirm if multi-touch works on any other host?

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2983

Posted: 06:53pm 03 Jun 2026

Copy link to clipboard

Print this post

Hi Peter,

I've cheekily taken the opportunity to attach a 'HID report descriptor' file for an OLED screen. This is with the hope that you can help get the USB multi-touch to work on it.

Touch HID report descriptor.zip

As you'd requested in earlier posts for some other screens, I'm hoping there's enough info in there, but if needed, I can run any other tests required.

Thanks for any help you can provide.....

EDIT: I can confirm it works 100% when connected to a Win 11 laptop (via HDMI for image, and via a single USB for touch & power
Edited 2026-06-04 04:56 by WhiteWizzard

grumpyoldgeek
Regular Member

Joined: 30/07/2018
Location: United States
Posts: 52

Posted: 07:28pm 03 Jun 2026

Copy link to clipboard

Print this post

What is the maximum size of FLASH and PSRAM supported by the current release?

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 623

Posted: 08:35pm 03 Jun 2026

Copy link to clipboard

Print this post

matherp said Homa

Another question. Have you run the display on a windows machine. Can you confirm if multi-touch works on any other host?

Yes, win11 oout of the box, multitouch and gesture control also works with two-finger zooming!

The old Records also mentioned 3-finger touch.
I was out and about. Tomorrow I’ll finish up several test runs with descriptions and upload them here for you.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11435

Posted: 09:48pm 03 Jun 2026

Copy link to clipboard

Print this post

homa and WhiteWizard please test the attached HDMIUSB version and report exactly what you see

PicoMite.zip

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 508

Posted: 05:30am 04 Jun 2026

Copy link to clipboard

Print this post

@Peter,

minor issue: the BACKLIGHT command in the HDMI version is still not an "no-op" command as announced but throws an error (Error : unknown command)

73 de OE1HGA, Gerald

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2983

Posted: 06:21am 04 Jun 2026

Copy link to clipboard

Print this post

Hi Peter

Thanks for test file - output below:

PicoMiteHDMI MMBasic USB RP2350B Edition V6.03.00RC16
Copyright 2011-2026 Geoff Graham
Copyright 2016-2026 Peter Mather

> Multi-touch Connected on channel 4 (10 contacts, 16383x9599)
> gui test touch
> 'nothing happens on screen in gui test touch
>
> 'will now unplug usb touch, and reconnect......
>
> Multi-touch Disconnected
>
> 'will now reconnect USB
>
> Multi-touch Connected on channel 4 (10 contacts, 16383x9599)
>
Error : USB device limit reached
>
>
> 'NOTE: display showing expected image throughout above (apart from Test Touch)

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 623

Posted: 08:23am 04 Jun 2026

Copy link to clipboard

Print this post

Peter,

At first I was put off by WhiteWizzard’s report, but I gave it a go anyway.
The result is that initially there’s no debug output either, and the “gui test touch” command clears the screen but doesn’t respond to it.

However, I noticed that after a reset and a quick, immediate "gui test touch", there is a brief window during which the screen responds to the test. After that, though, it stops responding. Only a RESET causes the behaviour to reappear, so it is reproducible.

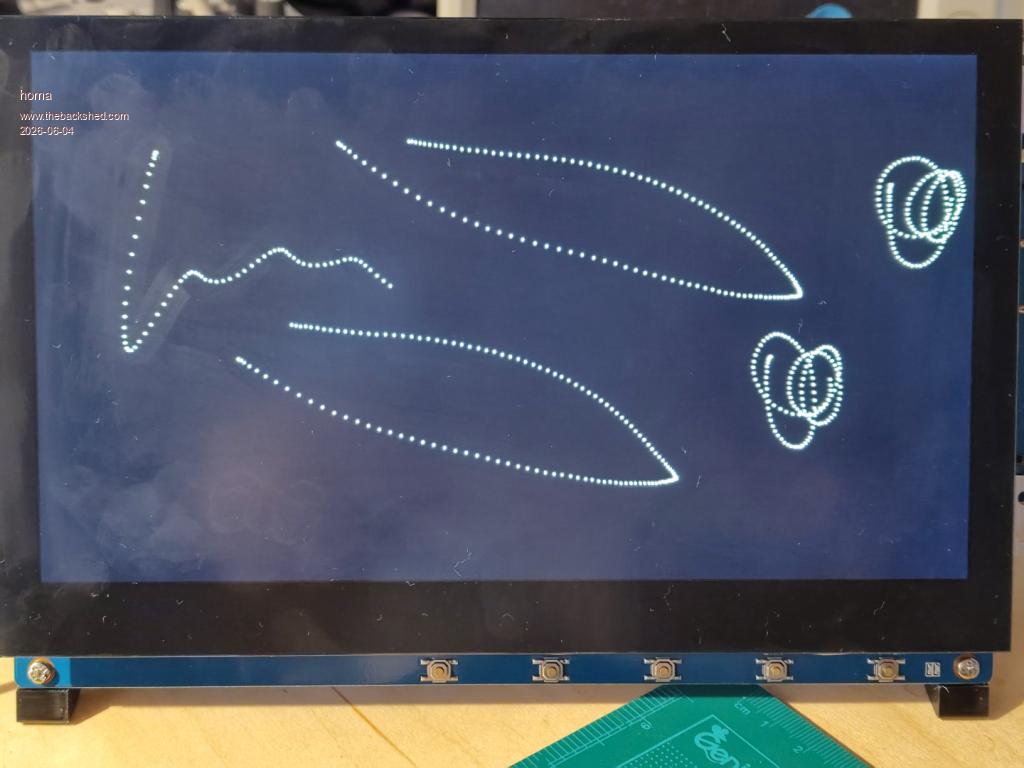

Attached is an image showing single-touch and two-finger-touch.

Matthias

Update: I can even reconnect the Microsoft mouse/keyboard dongle without a Hex Debug message appearing. However, the behaviour remains the same. The pump demo works via touch for a brief moment, then there is no response again. After that, it only works with the mouse.
Edited 2026-06-04 18:30 by homa

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11435

Posted: 08:30am 04 Jun 2026

Copy link to clipboard

Print this post

Matthias

I'm unclear what you are reporting. Is multi-touch now working but stops after a period? Does single touch also now stop when it didn't before?

This version should have the debug

PicoMite.zip
Edited 2026-06-04 18:35 by matherp

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 623

Posted: 08:34am 04 Jun 2026

Copy link to clipboard

Print this post

Peter,

1. RESET
2. Output:

PicoMiteHDMI MMBasic USB RP2350A Edition V6.03.00RC16
Copyright 2011-2026 Geoff Graham
Copyright 2016-2026 Peter Mather

> Multi-touch Connected on channel 4 (10 contacts, 16384x16384)
> GR USB Keyboard Connected on channel 1
> USB Mouse Connected on channel 2
>

3. gui test touch <--- immediate entry
4. You have about 5 seconds to test the touch, whether single or multi-touch! After that, only the touch function stops working. The Pico can still be fully operated via the terminal.
5. goto 1

Matthias

Footnote added 2026-06-04 18:35 by homa
With the RC15, the touch operates in single-mode throughout!

Page 17 of 20

Print this page
